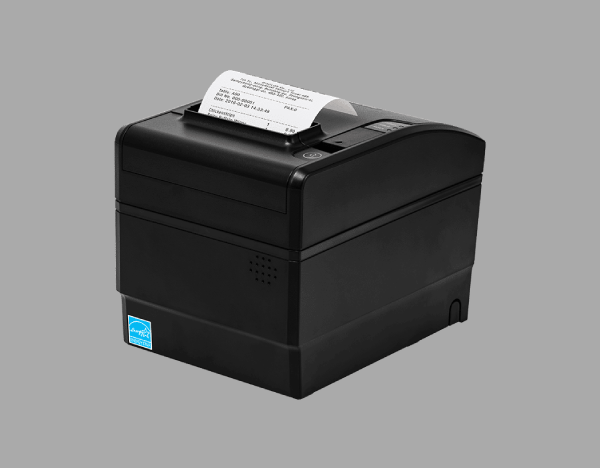

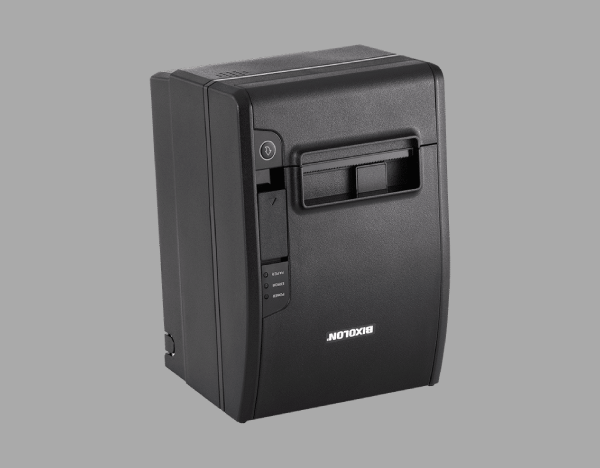

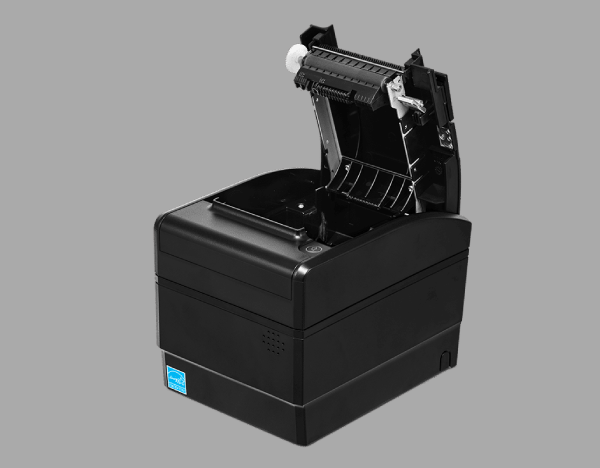

SRP-S300 TOEK
• Fashion appearance
• With high speed, excellent stability and durability
• Paper detection by transmission type, accurately and rapidly
• Imported thermal printer head, printing clearly and stable
• With function for automatic correction paper and carbon
| Specification | SRP - S300 TOEK |
|---|---|
| Print Characteristics | |
| Print Method | Direct Thermal |
| Print Speed | Up to 170 mm/sec |
| Print Resolution | 203 dpi |
| Print Width | Up to 72 mm |
| Sensor | Paper End, Black mark, Cover Open, Paper taken (option) |
| Media Characteristics | |
| Media Type | Linerless Restick |
| Media Width | 80 mm optional (40/58/62/83 mm) |
| Media Roll Diameter | Up to 103 mm |
| Media Thickness | 0.06 ~ 0.09 mm |
| Supply Method | Easy Paper Loading |
| Physical Characteristics | |
| Dimensions (W x D x H) | 155 x 210 x 160 mm (6.14 x 8.27 x 6.30 inch) |
| Weight | 2.00 kg (4.40 lbs.) |
| Electrical | EnergyStar Certified, External supply housed Internally (Adaptor 24V / 2.5 A) |
| Drawer Port | 2 ports (Via y-type adaptor) |
| Performance Characteristics | |
| Memory | 128 Mb SDRAM, 256 Mb Flash optional (256 Mb SDRAM, 512 Mb Flash) |
| NV Image Memory | 256 Kbytes (Mono) |
| Receive Buffer | 4 Kbytes |
| User Define Buffer | 12 Kbytes |
| Interface | |
| Standard: USB V2.0 FS + Ethernet | |
| Environment Characteristics | |
| Temperature | Operating: 0 ~ 40 °C (32 ~ 104 °F) Storage: -20 ~ 60 °C (-4 ~ 140 °F) |
| Humidity | Operating: 10 ~ 80 % RH Storage: 10 ~ 90 % RH |
| Seliing | IP21 |
| Software | |
| Emulation | BXL / POS, SLP, BZ, BPL-C |
| Driver / Utility | Windows Driver OPOS / JPOS Driver Linux / Mac CUPS Driver Virtual COM USB / Ethernet Driver Utility Program Network Auto Installer |
| SDK / Plugin | Android / iOS / Windows SDK Linux SDK Xamarin SDK Web Print SDK Cordova Plugin |
| Application | mPrint App (Android, iOS) |
| MDM (Optional) | BIXOLON Profile Manager - XPM™, XCM™ (Windows, Android) |
| Fonts / Graphics / Symbologies | |
| Character Size | Font A: 12 x 24, Font B: 9 x 17, Font C: 9 x 24, KOR, CHN, JPN: 24 x 24 Characters Per Line SRP-350plusV: Font A: 42, Font B: C: 56, KOR, CHN, JPN: 21 SRP-352plusV: Font A: 48 Font B: C: 64 KOR, CHN, JPN: 24 |
| Character Sets | Alphanumeric: 95 Extended Graphics: 128 x 35 page International: 32 |
| Graphics | Supporting user-defined fonts, graphics, formats, and logos |
| Barcode Symbologies | 1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E 2D: Data Matrix, PDF417, QR code |
| Accessories | |
| Standard | Power Cord, USB A-B Cable 1.8 m |
| Optional | Wall mount, External buzzer |
