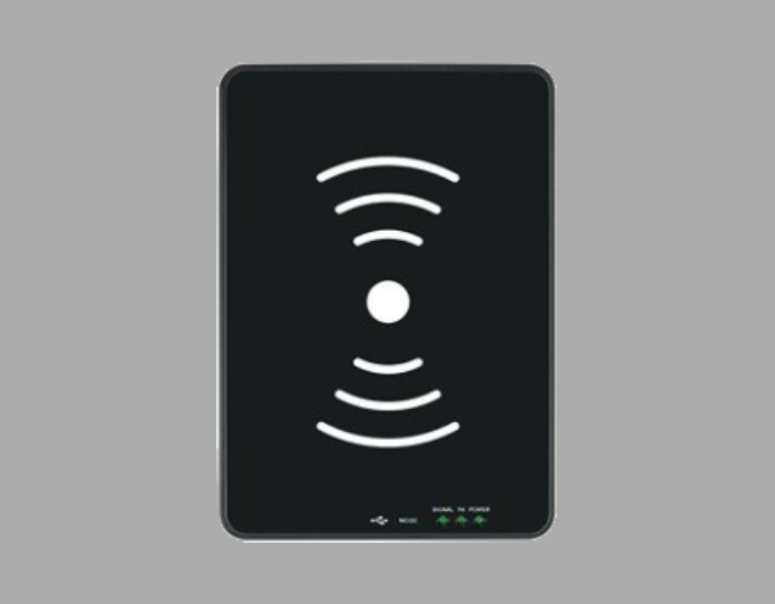

S120
USB RFID Desktop Reader/Writer
• Built-in Circular polarization antenna, writing & reading tag easily
• Delicate and compact design, more friendly with end users
• IMPINJ RAIN RFID E310 or QM100 chipset offer lower cost & higher performance
• USB mode / HID keyboard output mode, driver free, online upgrade
• Support all mandatory ISO18000-6C commands
• Widely used in working station, document management,
date issuing, retail cashier, access control, etc.
Visual Status IndicatorPower, Status
| Air Protocol | ISO/IEC 18000-6C/EPC C1G2 |
|---|---|
| Frequency | USA: 902 MHz–928 MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302208) CN: 920-925MHz (CMIIT) |
| Supportable /optional | Russian / Japan / Korea /Malaysia / Thailand / other customizable |
| Reading ＆ Writing Range | Reading Range: 0–1 m Writing Range: 0–20 cm (According to Tag & Environment) |
| Dimensions | 170*120*17mm |
| Weight | 0.25kg |
| Housing Material | Die-cast aluminum/ABS cover |
| Operating Temperature | -20 - +70°C |
| Storage Temperature | -40 - +85°C |
| Humidity | 5-90% non-condensing (+25) |
