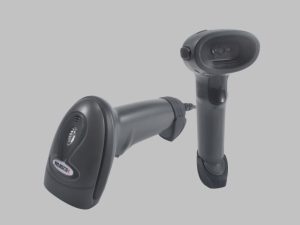

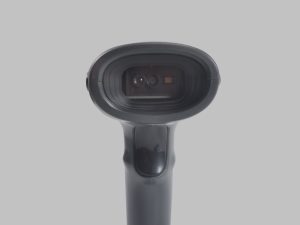

RS 3200
Experience unparalleled convenience and durability with the RS3200, a remarkable 2D barcode scanner designed for optimal user comfort. Boasting programmable tone and volume for buzzers, this scanner ensures a personalized and user-friendly experience in any setting. Its advanced 2D scanning capability, featuring an impressive resolution of 1280(H) x 800(V) pixels, guarantees accurate and swift data capture. With versatile connectivity options, including USB, RS232, and VCOM interfaces, seamless integration with your existing systems is effortless. The RS3200 excels in challenging conditions, offering exceptional print contrast of more than 25%, ensuring reliable performance even with intricate barcodes. Moreover, this scanner is built to withstand the test of time, boasting drop durability of up to 5 meters.
Features
• With a programmable tone and volume for buzzers, the RS3200 is a 2D barcode scanner
built to offer extreme convenience for the user and increased durability in
any environment.
• 2D Scanner-1280(H)*800(V)Pixels
• USB, RS232, VCOM Interface
• Print Contrast of more than 25%
• Up to 5 meters of Drop Durability
| Image(Pixels) | 1280 pixels(H)*800 pixels(v) 1Million Pixels | ||
|---|---|---|---|
| Light Source | Aiming: 617 nm White LED; illumination:6500K White LED | ||
| Depth of Field | 40-250mm@UPC/EAN 13mil PCS=90%;20-250mm@QR 20mil PCS=100% ; 20mm -300 mm @ 20mil | ||
| Scan Angle/Speed | Elevation angle 65°/Tilt angle 30°/Declination 55° ; 400 scans/sec | ||
| Field of view | 34° horizontal, 28° vertical | ||
| Read Resolution | More than 4 mil | ||
| Print Contrast | More than 25% | ||
| Visual Indicator | Blue LED Lights , Buzzer | ||
| Communication Interfaces | USB/RS-232 (HID-KBW Or Virtual Serial Port) | ||
| Beeper Operation | Programmable tone & Volume | ||
| Dimension H x W X L | 173mm*67mm*94mm (Length x Width x Height) | ||
| Weight | 220g (With Cable) /190G (Without cable ) | ||
| Material | ABS + PC | ||
| Cable | Standard 1.8M straight | ||
| Input Voltage | 5VDC±10% | ||
| Working current | 80-170mA(min/max) | ||
| Laser Class | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI | ||
| EMC | CDRH Class II, IEC 60825-1 Class 1 | ||
| Operating Temperature | -20°C to 60°C | ||
| Storage Temperature | -40°C to 70°C | ||
| Working Humidity | 5% to 95% relative humidity, non-condensing | ||
| Ambient Brightness | 0 to 100,000 Lux (Daylight) | ||
| Drop Durability | Designed to withstand 5 Meters drop | ||
| Decode Capability |
|
||
| IP Leve | IP54 | ||
| Drivers | Linux/Win/U-POS | ||
| BIS Number | CRS 2020-0031/R-41151041 | ||
| Warranty | 3 year against manufacturing defects | ||
