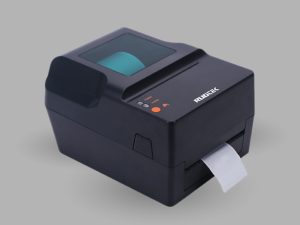

RP85- A
Experience top-notch label printing with Rugtek’s high-speed label printer, designed for versatility and efficiency. With a print width of 72 mm, it accommodates various label sizes. Operating at a speed of 150mm/sec, it ensures swift and precise output. The 203dpi resolution guarantees clear, detailed labels. It features a default USB interface, with optional USB, Serial, Ethernet, and Parallel interfaces for expanded connectivity.
Key Features
• High Speed Label Printer
• Print Width : 72mm
• Printing Speed : 150mm/sec
• Resolution : 203dpi (8dot/mm)
• Interface: Default USB
• Optional Interfaces: USB, Serial, Ethernet,Parallel
Paper Exist DetectionPhotoelectricity Sensor
| Printing Method | Direct Thermal Printing | ||
|---|---|---|---|
| Resolution | 203dpi | ||
| Paper Width | 24 ~ 82mm | ||
| Print Speed | 150mm/s，127mm/s | ||

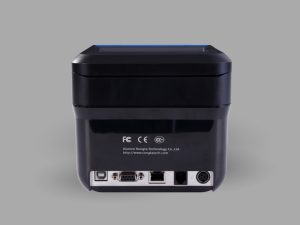

| Interface | Serial, Parallel, USB, Ethernet | ||
| Memory | DRAM:8M，FLASH:4M | ||
| Heating Head Temperature Detection | Thermistor | ||
| Paper End Detection | Photoelectricity Sensor | ||
| Printing Head Position Detection | Micro Switch | ||
| Barcode | UPC-A/UPC-E/EAN8/EAN13/CODE39/ITF/CODABAR/CODE93/ | ||
| CODE128/PDF417/QRCODE | |||
| Character Enlarge/Rotation | Enlarge into 1~8 times both Horizontal and Vertical； | ||
| Rotary Printing at 90°/270° | |||
| Graphic | Support BMP, ICO, EMF, WMF etc. format image file to download | ||
| to FLASH, DRAM | |||
| Paper Type | Thermal Roll Paper，Sticker，Thermal Label Pager etc. | ||
| Medium Width | 24 ~ 82mm | ||
| Paper Roll Diameter | Maximun 85mm，Minumun 25mm | ||
| Paper Out Method | Tear or Strip | ||
| Input | 24DC，2.0A | ||
| Weight | About 1.5kg | ||
| Printer Dimension （L×W×H） | 237mm x 146mm x 130mm | ||
| Working Temperature/Humidity | 5 ~ 45℃，20 ~ 80%RH（noncondensing） | ||
| Storage Temperature/Humidity | -40 ~ 55℃，≤90%RH（noncondensing） | ||
| Machinery Lifespan | 100km | ||
FAQs
Operators of the Rugtek RP85- D label printer include printer labeling for quick and complex labeling, with the printer displaying a print width of 72mm and a print speed of 150mm/sec.
They have a 72mm print width, 150mm/sec printing speed, and 203dpi resolution, and the communication interface is USB by default. There are interfaces: USB interfaces, Serial interfaces, Ethernet interfaces, and parallel interfaces.
The label printer incorporated in the Rugtek RP85-A gives it a labeling efficiency and speed with various label dimensions where the printing speed stands at 150mm/sec.
The Rugtek RP85-A has a print head that allows the output of up to 203dpi (8dot/mm) so that high-quality labels can be produced.
With a view to the previous model, the Rugtek RP85-A features an improved ability to handle label size and has a maximum print width of up to 72mm.
For its basic communication mode, the Rugtek RP85-A uses universal USB interfaces and additional connection interfaces with higher speed: USB, serial interface, Ethernet, and parallel connection.
Yes, the Rugtek RP85-A label printer can integrate with other units of devices because it has a USB, serial, Ethernet, and parallel port available.
The label width of the Rugtek RP85-A label printer is 72 mm., while the size of the labels that the printer accepts is without limit.
With an impact resolution of 203 dpi, the Rugtek RP85-A prints accurate labels that are clearly seen by the naked eye.
Indeed, this Rugtek RP85-A label printer does come with a default built-in USB interface to support it when it interfaces with several devices.
