RP76X
High Performance Compact Intelligent Table Top Thermal Ticket Printer
Salient Features
- Designed to meet the on demand tixket printing with full feature to control & monitor the ticket printing.
- Auto Load & adjust upon loading of paper to print position.
- Supports multiple ticket size.
- Status monitoring of printer through special commands sent via I/O (features like paper out/cover open/
- offline/online /ready/print success status).
- Printer stop printing when cover open.
- Clears buffer memory when cover open or power off.
- Supports multiple ticket length with black mark as end of ticket.
- Supports print from 2nd line when new or relaod of media roll, cover open, printer on/off condition.
| Specification | RP76X |
|---|---|
| Print Specifications | |
| Print Method | Direct Thermal (outer coating support), |
| Resolution | 203dpi |
| Color | Black |
| Print Speed | Max 127mm/sec, (150mm/sec in continues paper feed). Print immediately on print command |
| RAM | 8MB, Flash: 4MB(expand memory 8MB realizable). |
| Media Specifications | |
| Print Width | 26.7-120mm |
| Print Width/Length | Max W 104mm /L upto 200mm, |
| Paper Thickmess | 60 – 120 GSM |
| Paper-cut width/condition | Max 120mm/Leaves for 2+0.5mm, No Cut/Partial Cut/ Full Cut |
| Paper Roll | Supports media roll Dia upto 150mm(Prints approx 500 tickets), Optional external stand for larger media roll above 150mm |
| Sensor | |
| Media Sensor | Continuous Receipt, Label Gap & black Mark Sensor (Supports max 102mm width, height 2~4mm), cover open, paper present |
| Button / Cutter Specifications | |
| Buttons | Power On & Status |
| Paper-Cutting time | Up to 600 milliseconds/per cycle |
| Paper-Cutting Frequency | Fastest 60 times per minute |
| MTBF | Printing 5m lines or 100KM length/cutting-1m times) |
| Interface | |

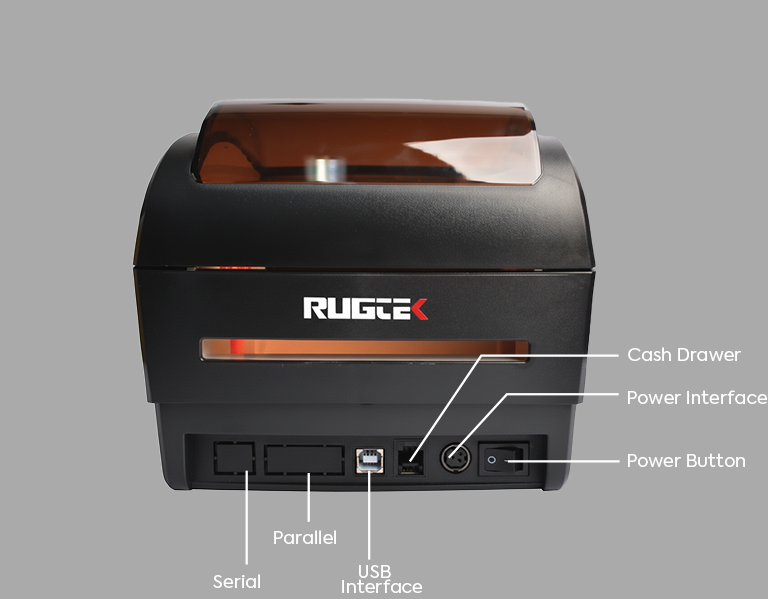

| Connectivity | Auto Support USB+Serial, USB + Parallal / Serial Optional BT & WiFi. Factory Default baud rate can be set. |
| Command / OS Support | |
| Command Set | Full Support of ESC/POS, CPCL |
| Operating Systems | Windows XP / 7 / 10, Android, Linux |
| Barcode / Language / Font Support | |
| Barcode | Support 1D, 2D & QR Barcode |
| Languages | Default Hindi & English (Other languages on request) |
| Fonts | 12 × 24 fonts, Special Railway Fonts, Italic vowel support |
| Graphics | Supports graphic printing (CR disable feature) |
| Power | |
| Power Supply | DC 24V / 2.5A |
| Input Voltage | AC 90V – 240V |
| Peak Current | 8A |
| Physical Characteristics | |
| Dimensions (L × W × H) | 238 × 170 × 168 mm |
| Weight | 1.4 kg |
| Environment Parameters | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -10°C – 60°C |
| Humidity | 10% – 90% RH (Non-condensing) |
| Accessories | |
| Included | Adaptor, Communication Cable, Power Cable, User Manual, In-built Paper Guide |
