Rugtek RP76x-I | High-Speed Thermal Ticket Printer for Retail & Transport

RP 76x Series / RP 76x I

High Performance Compact Intelligent Table Top Thermal Ticket Printer

Salient Features

Designed to meet the on demand tixket printing with full feature to control & monitor the ticket printing.

Auto Load & adjust upon loading of paper to print position.

Supports multiple ticket size.

Status monitoring of printer through special commands sent via I/O (features like paper out/cover open/

offline/online /ready/print success status).

Printer stop printing when cover open.

Clears buffer memory when cover open or power off.

Supports multiple ticket length with black mark as end of ticket.

Supports print from 2nd line when new or relaod of media roll, cover open, printer on/off condition.

Print Specifications	Print Method: Direct Thermal (outer coating support), Resolution: 203dpi, Color: Black Print Speed: Max 127mm/sec, (150mm/sec in continues paper feed). Print immediately on print command RAM: 8MB, Flash: 4MB (expand memory 8MB realizable).
Media Specifications	Print Width: 26.7-120mm, Print Width/Length: Max W 104mm /L upto 200mm, Paper Thickmess: 60-120GSM Paper-cut width/condition: Max 120mm/Leaves for 2+0.5mm, No Cut/Partial Cut/ Full Cut Paper Roll: Supports media roll Dia upto 150mm(Prints approx 500 tickets), Optional external stand for larger media roll above 150mm
Media Sensor	Continuous Receipt, Label Gap & black Mark Sensor (Supports max 102mm width, height 2~4mm), cover open, paper present
Button / Cutter Spec	Button: Power On & Status Paper-cutting time: Up to 600 milliseconds/per cycle Paper-cutting frequency: Fastest 60 times per minute, MTBF: Printing 5m lines or 100KM length/cutting-1m times)

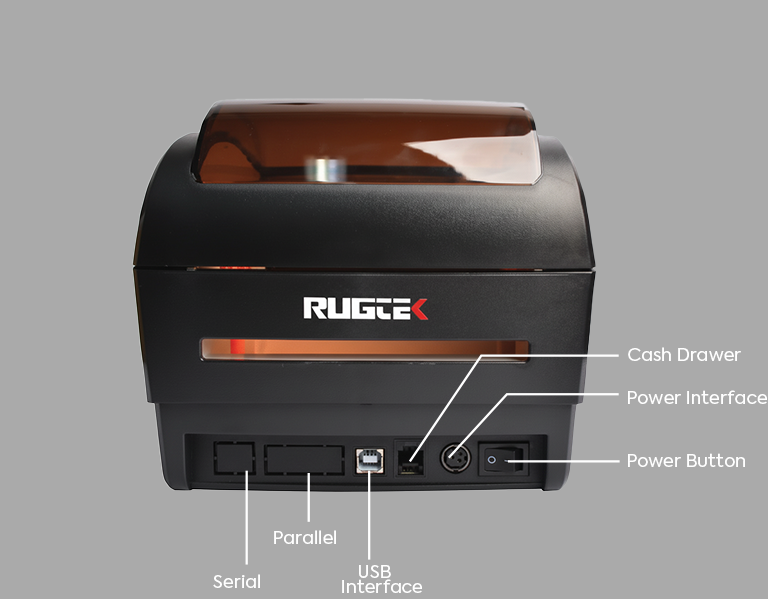

Interface	Auto Support USB+Serial, USB + Parallal / Serial Optional BT & WiFi. Factory Default baud rate can be set.

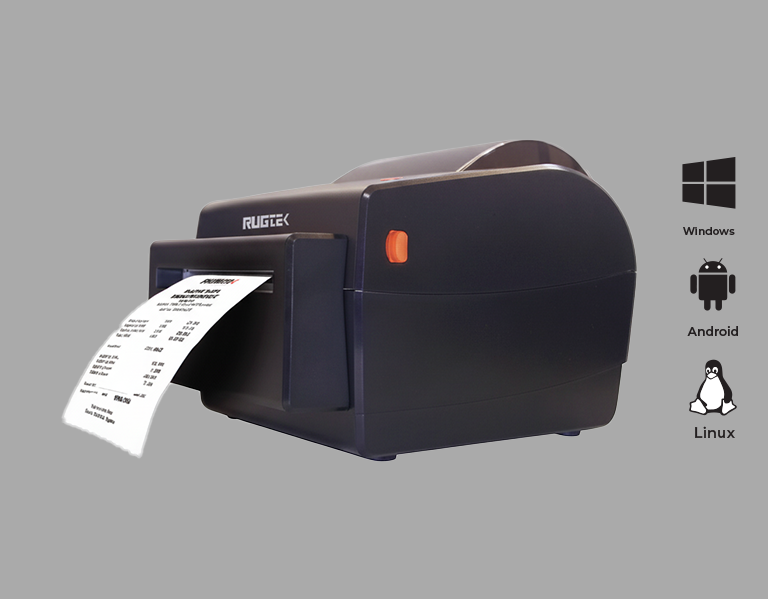

Command/OS Support	Full Support of ESC/POS, CPCL/WinXp, Win7/10, Android, Linux
Barcode /Language / Font Support	Support 1D, 2D & QR Barcode, Default Hindi & English, other Language Support on request. Supports Graphics printing (CR disable feature incorporated) 12x24 fonts & special Railway Fonts to print all Vowel characters in Italic & option to customise the printer firmware with any special fonts."
Power	Specification: DC 24V/2.5A , Power Adaptor AC support 90v~240v Peak Value: 8A
Dimensions(LxWxH) /Weight	238mm(L)170mm(W)168mm(H)/1.4kg
Environment Parameters	Operating Temperature (oC): 0o~60o&nbsp Humidity : 10~90% RH (Non Condensing)&nbsp Storage Temperature: -10oC~60oC
Accessories	Adaptor, Communication Cable, Power Cable, User Manual, In-built paper Guide to align receipt printer

Designed to meet the on demand tixket printing with full feature to control & monitor the ticket printing.
Auto Load & adjust upon loading of paper to print position.
Supports multiple ticket size.
Status monitoring of printer through special commands sent via I/O (features like paper out/cover open/
offline/online /ready/print success status).
Printer stop printing when cover open.
Clears buffer memory when cover open or power off.
Supports multiple ticket length with black mark as end of ticket.
Supports print from 2nd line when new or relaod of media roll, cover open, printer on/off condition.

BROCHURE

Technical Specifications

Print Specifications	Print Method: Direct Thermal (outer coating support), Resolution: 203dpi, Color: Black Print Speed: Max 127mm/sec, (150mm/sec in continues paper feed). Print immediately on print command RAM: 8MB, Flash: 4MB (expand memory 8MB realizable).
Media Specifications	Print Width: 26.7-120mm, Print Width/Length: Max W 104mm /L upto 200mm, Paper Thickmess: 60-120GSM Paper-cut width/condition: Max 120mm/Leaves for 2+0.5mm, No Cut/Partial Cut/ Full Cut Paper Roll: Supports media roll Dia upto 150mm(Prints approx 500 tickets), Optional external stand for larger media roll above 150mm
Media Sensor	Continuous Receipt, Label Gap & black Mark Sensor (Supports max 102mm width, height 2~4mm), cover open, paper present
Button / Cutter Spec	Button: Power On & Status Paper-cutting time: Up to 600 milliseconds/per cycle Paper-cutting frequency: Fastest 60 times per minute, MTBF: Printing 5m lines or 100KM length/cutting-1m times)
Interface	Auto Support USB+Serial, USB + Parallal / Serial Optional BT & WiFi. Factory Default baud rate can be set.
Command/OS Support	Full Support of ESC/POS, CPCL/WinXp, Win7/10, Android, Linux
Barcode /Language / Font Support	Support 1D, 2D & QR Barcode, Default Hindi & English, other Language Support on request. Supports Graphics printing (CR disable feature incorporated) 12x24 fonts & special Railway Fonts to print all Vowel characters in Italic & option to customise the printer firmware with any special fonts."
Power	Specification: DC 24V/2.5A , Power Adaptor AC support 90v~240v Peak Value: 8A
Dimensions(LxWxH) /Weight	238mm(L)170mm(W)168mm(H)/1.4kg
Environment Parameters	Operating Temperature (oC): 0o~60o&nbsp Humidity : 10~90% RH (Non Condensing)&nbsp Storage Temperature: -10oC~60oC
Accessories	Adaptor, Communication Cable, Power Cable, User Manual, In-built paper Guide to align receipt printer
